Lian-Li’s Latest Mini-ITX Case Features Chamber Separation and Lots of Tempered Glass

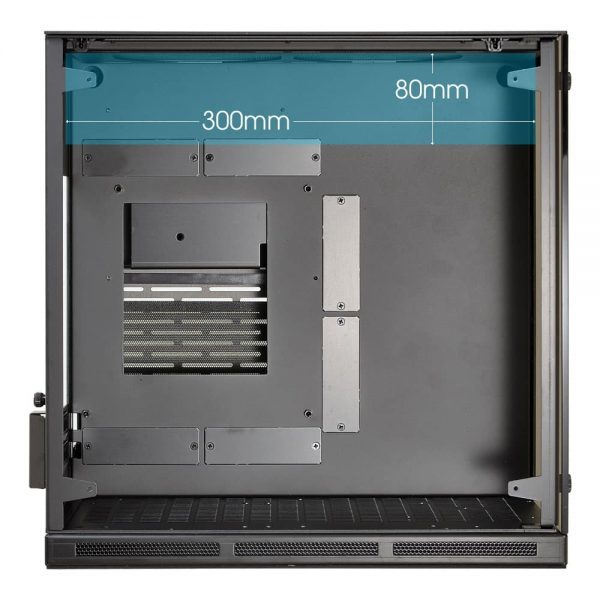

Taiwanese PC hardware manufacturer Lian Li have unveiled a new Mini-ITX case which utilises a dual zone design. Chamber separation on smaller form factor cases like these is important for heat dissipation, but Lian Li has gone the extra mile by also providing liquid cooling support for radiators as large as 300mm x 120mm x 80mm.

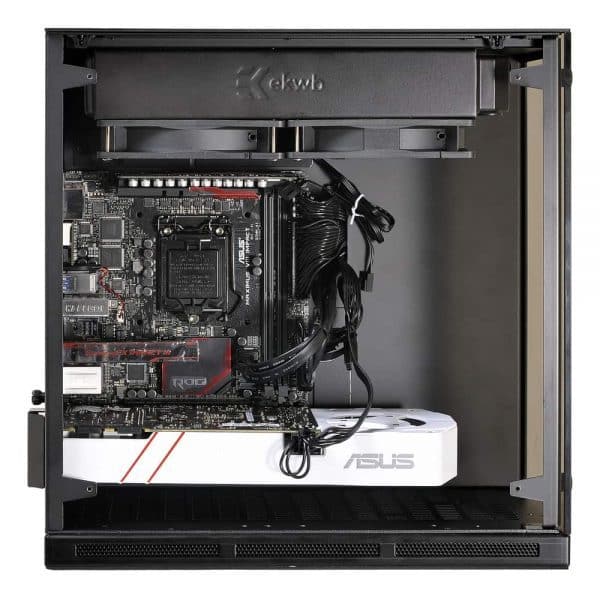

lian-li-pc-q37-5

The case also features tempered glass panels, not just on the side,  but on the front as well. This means you can display the nice looking half of your PC in its complete glory while tucking away the wire mess in the other chamber, where the PSU and hard disks are housed.

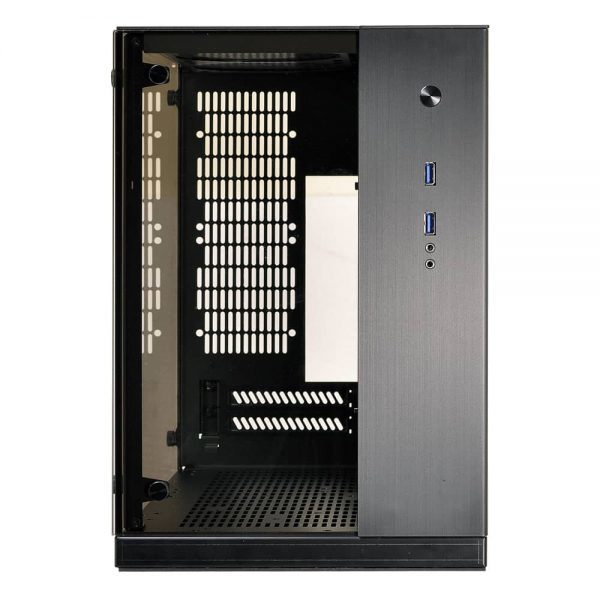

lian-li-pc-q37-4

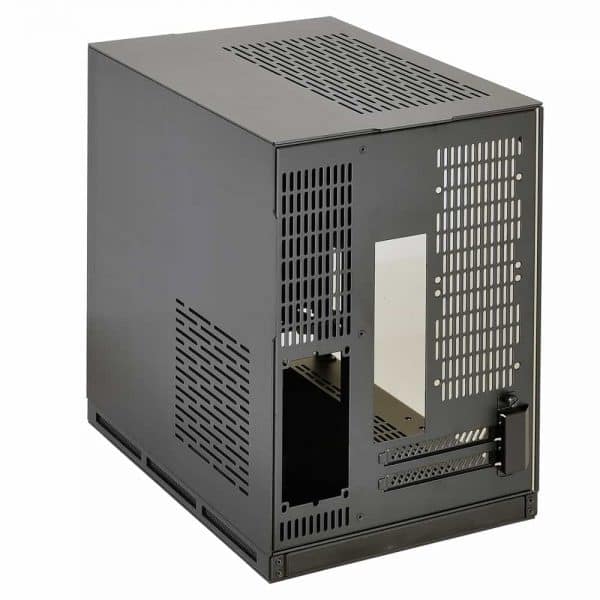

lian-li-pc-q37-2

The HDD rack can support two 3.5″ drives and one 2.5″ drive and the maximum supporte GPU Card length is 320mm. PSUs of 220mm or shorter should fit fine and if you’re opting for a CPU air cooler, be sure that it’s less than 13cm tall.

lian-li-pc-q37

Model PC-Q37
Case Type Mini Tower Chassis
Dimensions (W)237mm
(H)345mm
(D)346mm
Color Black
Front Panel Tempered Glass
Side Panel Tempered Glass
Body Material Aluminum
Net Weight 5.25kg
5.25″ drive bay (External) None
3.5″ drive bay (External) None
HDD bay 3.5″ HDD x2
2.5″ HDD x2
Expansion Slot 2
M/B Type Mini-ITX
System Fan (Optional) 120mm fan x2 (Top)
80mm fan x2 (Rear)
120mm fan x2 (Bottom)
I/O Ports USB3.0 x2
HD Audio
Maximum Compatibility VGA Card length: 320mm
PSU length: 220mm
CPU cooler height:130mm
Space of Radiator 300mm x 80mm x 120mm
PSU Type SFX PSU (Optional)
