Biostar TB85 Motherboard Made For Bitcoin Mining

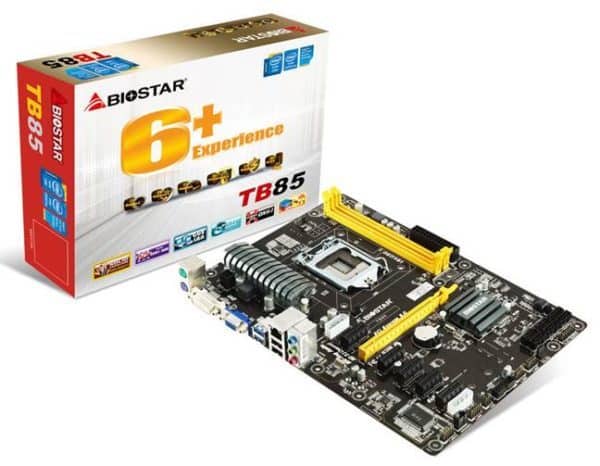

image001 (4)

The currency of the internet is seemingly becoming more valuable and sought after, rising in valuation and a preferred choice of many, Bitcoin or altcoins are like gold of the world wide web. Just like any mineral, they are mined, in this case mining for crytocurrency requires large and complex machinery that can churn the algorithms to produce the digital currency.

For those who would like to change the career and get into the mining business you can start with Biostar latest motherboard intended just for the those pursuing cryptocurrency mining. The new TB85 motherboard features multiple expansion slots to allow usage of multiple cards simultaneous essential for the purpose. It supports Intel 1150 processors and features the B85 chipset.

Supporting 4th-gen Intel processors, the motherboard also allows for home use, gaming and business due to its wide array of features. What makes the TB85 MB worthy for the job, is the 6PCI-e slots, which can be fully utillised to render the long grueling work load for mining.

Also fitted are X.D.C. solid capacitors with a VRM heatsink for more efficient cooling of the components. The board features Intel Small Business Advantage allowing users to monitor the status of their motherboard as well other security features to protect their mining investment.

The MSRP for the BIOSTAR TB85 motherboard is at $69.99.

Chipset Intel B85
CPU SUPPORT Intel® Core™ i7 LGA 1150 Processor
Intel® Core™ i5 LGA 1150 Processor
Intel® Core™ i3 LGA 1150 Processor
Intel® Pentium® LGA 1150 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY Support Dual Channel DDR3 1600/1333/1066 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory
EXPANSION SLOT 1 x PCI-E x16 3.0 Slot
5 x PCI-E x1 2.0 Slot
STORAGE 4 x SATA3 Connector
2 x SATA2 Connector
USB 2 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header
LAN Realtek RTL8111G – 10/100/1000 Controller
INTEGRATED VIDEO By CPU model
Supports DX11.1
Supports HDCP
CODEC Realtek ALC892 8-Channel Blu-ray Audio
REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x DVI Connector
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O 1 x USB 3.0 Header
2 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
2 x SATA2 3Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Header
2 x System Fan Header
1 x Serial Header
1 x CIR Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION ATX Form Factor Dimension: 29.5cm x 21cm ( W x L )
